SURFACE/SURFACE EASY
850(ft.600) – 1050(ft.800) – 1200(ft.900) – 1500(ft.1200) – 2150(ft.1600) – 2450(ft.1800)
5 Models
Also for
large formats
large formats
Uniform
application
application
2 frames:
cantilever
or trestle
cantilever
or trestle
Macchina velatrice completamente automatica nella regolazione della portata,
costruita internamente in acciaio, per l'applicazione di smalti microgranulari, cristalline.

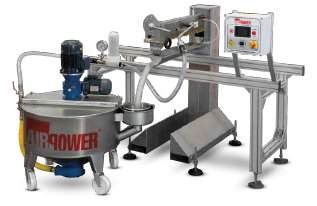

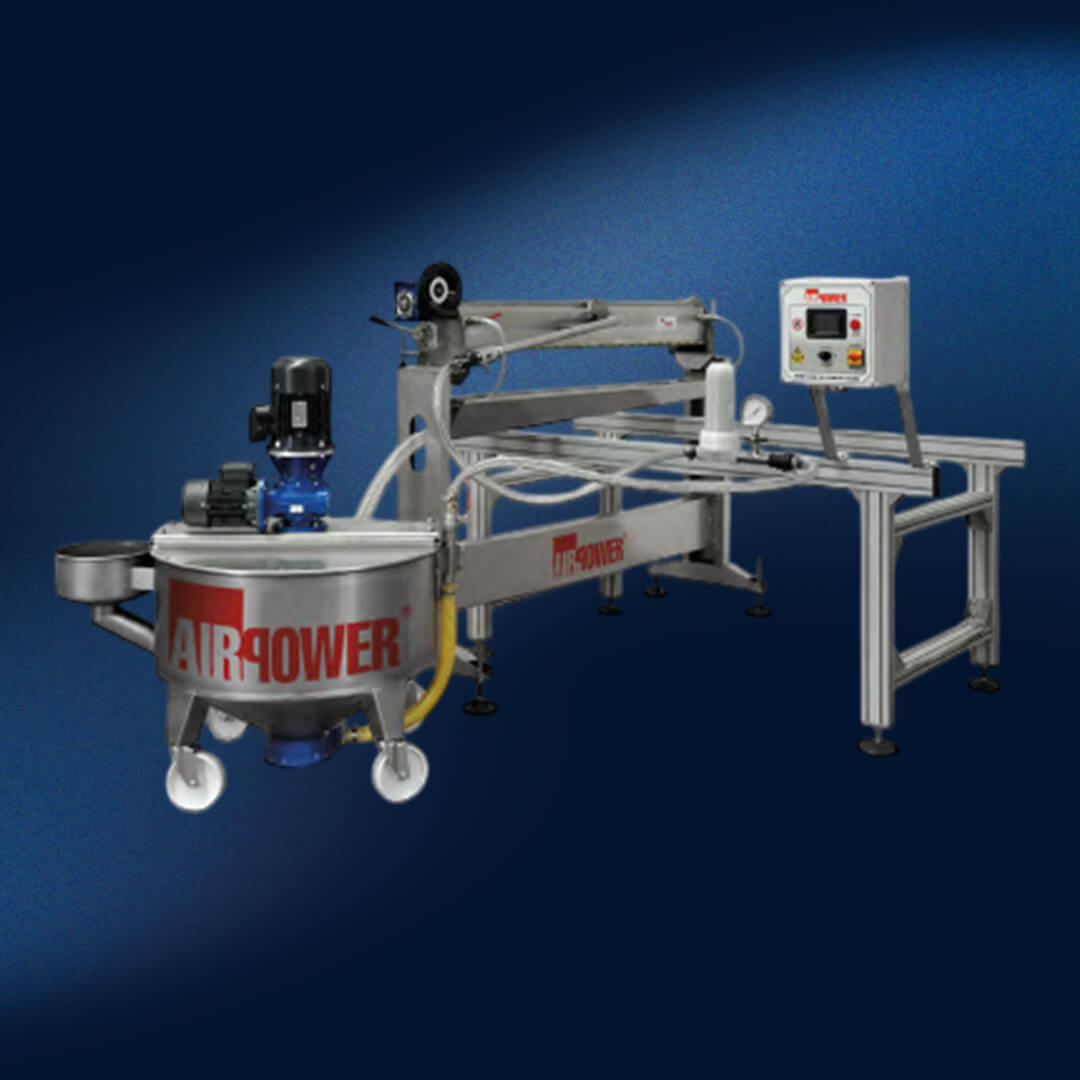

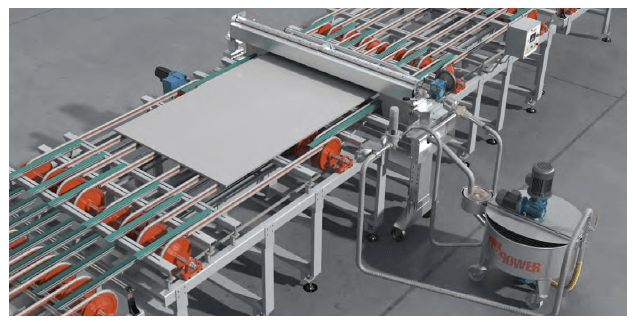

Waterfall system with fully automatic flow regulation
constructed entirely of AISI 304 stainless steel, for glazes, glass, glazes with microgrits and vitrified transparent frits application.
costruita internamente in acciaio, per l'applicazione di smalti microgranulari, cristalline.
Waterfall system with fully automatic flow regulation
constructed entirely of AISI 304 stainless steel, for glazes, glass, glazes with microgrits and vitrified transparent frits application.
| MODELLO Model | mm | 850 | 1050 | 1200 | 1500 | 2150 | 2450 |
|---|---|---|---|---|---|---|---|
| FORMATO MAX COTTO Max. Fired Size | mm | 600 | 800 | 900 | 1200 | 1600 | 1800 |
| FORMATO MAX CRUDO Max. Green Size | mm | 660 | 870 | 1050 | 1340 | 1900 | 2200 |
| LUNGHEZZA LAME Blade Length | mm | 850 | 1050 | 1250 | 1524 | 2150 | 2450 |
Model 850 mm
Max. Fired Size600 mm
Max. Green Size660 mm
Blade Length850 mm
Model 1050 mm
Max. Fired Size800 mm
Max. Green Size870 mm
Blade Length1050 mm
Model 1200 mm
Max. Fired Size900 mm
Max. Green Size1050 mm
Blade Length1250 mm
Model 1500 mm
Max. Fired Size1200 mm
Max. Green Size1340 mm
Blade Length1524 mm
Model 2150 mm
Max. Fired Size1600 mm
Max. Green Size1900 mm
Blade Length2150 mm
Model 2450 mm
Max. Fired Size1800 mm
Max. Green Size2200 mm
Blade Length2450 mm
Model 850 mm
Max. Fired Size600 mm
Max. Green Size660 mm
Blade Length850 mm
Model 1050 mm
Max. Fired Size800 mm
Max. Green Size870 mm
Blade Length1050 mm
Model 1200 mm
Max. Fired Size900 mm
Max. Green Size1050 mm
Blade Length1250 mm
Model 1500 mm
Max. Fired Size1200 mm
Max. Green Size1340 mm
Blade Length1524 mm
Model 2150 mm
Max. Fired Size1600 mm
Max. Green Size1900 mm
Blade Length2150 mm
Model 2450 mm
Max. Fired Size1800 mm
Max. Green Size2200 mm
Blade Length2450 mm
Control-weight: controlla il flusso di portata e tramite regolatore inverter mantiene costante i parametri di peso impostati.
Control-weight: control panel to control the flow capacity and to keep the pre-set weight parameter constant by inverter.
